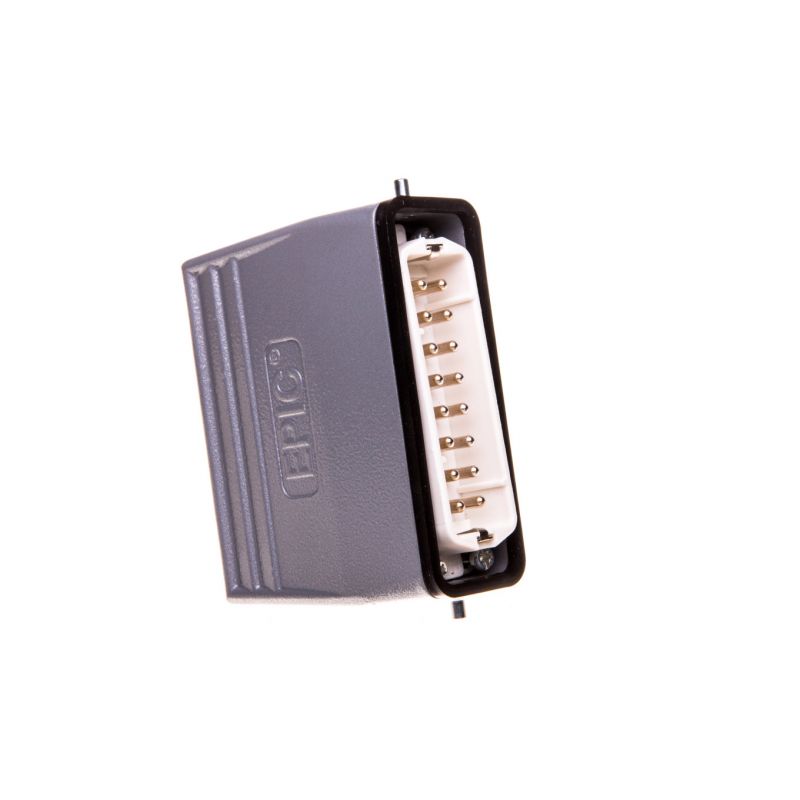

Complete set 16+PE male contact /plug housing + cartridge/ EPIC KIT H-A 16 SS TS M20 75009631

Dane techniczne

Type of electrical connection

Flat plug connection

Ambient temperature [°C] from

-40

Ambient temperature [°C] to

100

Shape

Rectangular

Rated current In [A]

16

Type of contact

Pin/Stick

Cross-section of the connected single-wire cable [mm2] from

0,08

Cross-section of the connected single-wire cable [mm2] to

2,5

Cross-section of the connected cable with sleeve terminal [mm2] from

0,08

Cross-section of the connected cable with sleeve terminal [mm2] to

2,5

Cross-section of the connected multicore cable [mm2] from

0,08

Cross-section of the connected multicore cable [mm2] to

2,5

Rated surge voltage [kV]

4

Degree of contamination (values)

3

Contact coating material

Silver

Contact material

Copper

With housing

Yes

Cartridge material

Other
