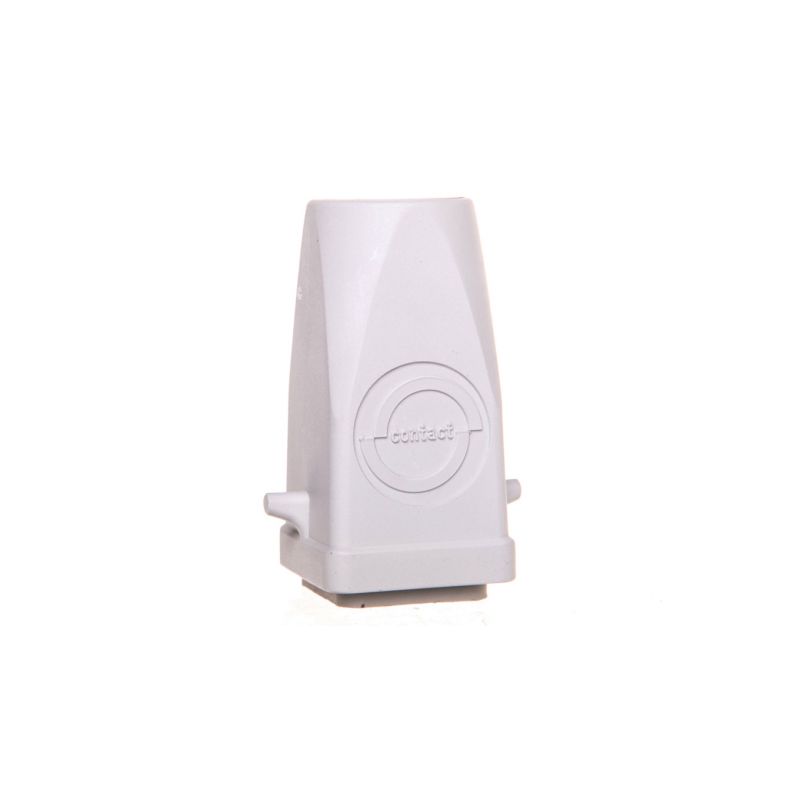

Complete set 4+PE male /plug housing + cartridge/ EPIC KIT H-A 4 SS TG M20 75009613

Dane techniczne

Rated voltage [V]

400

Type of electrical connection

Screw connection

Housing material

Plastic

Ambient temperature [°C] from

-40

Ambient temperature [°C] to

100

Type of locking

Other

With lock

Yes

Rated current In [A]

23

Type of contact

Pin/Stick

Operating temperature range [°C] from

-40

Operating temperature range [°C] to

100

Cross-section of the connected single-wire cable [mm2] from

0,08

Cross-section of the connected single-wire cable [mm2] to

2,5

Cross-section of the connected cable with sleeve terminal [mm2] from

0,08

Cross-section of the connected cable with sleeve terminal [mm2] to

2,5

Cross-section of the connected cable without sleeve terminal [mm2] from

0,08

Cross-section of the connected cable without sleeve terminal [mm2] to

2,5

Cross-section of the connected multicore cable [mm2] from

0,08

Cross-section of the connected multicore cable [mm2] to

2,5

Number of contacts

4

Number of contact paths

2

Rated surge voltage [kV]

4

Degree of contamination (values)

3

Contact coating material

Silver

Plug/connector angle

180° (horizontal)

Degree of protection (IP), mounted

IP65
