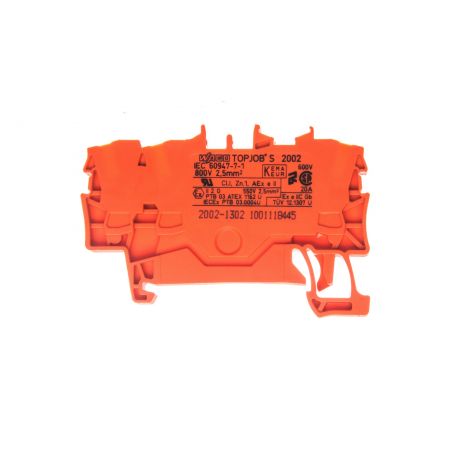

Rail connector 3-wire 2,5mm2 orange 2002-1302 TOPJOBS

Dane techniczne

Colour

Orange

Mounting method

Mounting rail DIN 35 mm

Length [mm]

59,5

Rated current In [A]

24

Explosion-proof version "EEx e"

Yes

Electrical connection type 1

Spring clamp

Connection position

Top / top

Number of levels

1

Number of terminals per floor

3

Internal bridged floors

No

Type of insulating material

Thermoplastic

Width / size of pitch [mm]

5.2000

Height at the lowest mounting method [mm]

33

Required closing plate

Yes

Cross-section of the connected single-wire cable [mm2] from

0,25

Cross-section of the connected single-wire cable [mm2] to

2,5

Cross-section of the connected multicore cable [mm2] from

0,25

Cross-section of the connected multicore cable [mm2] to

2,5
