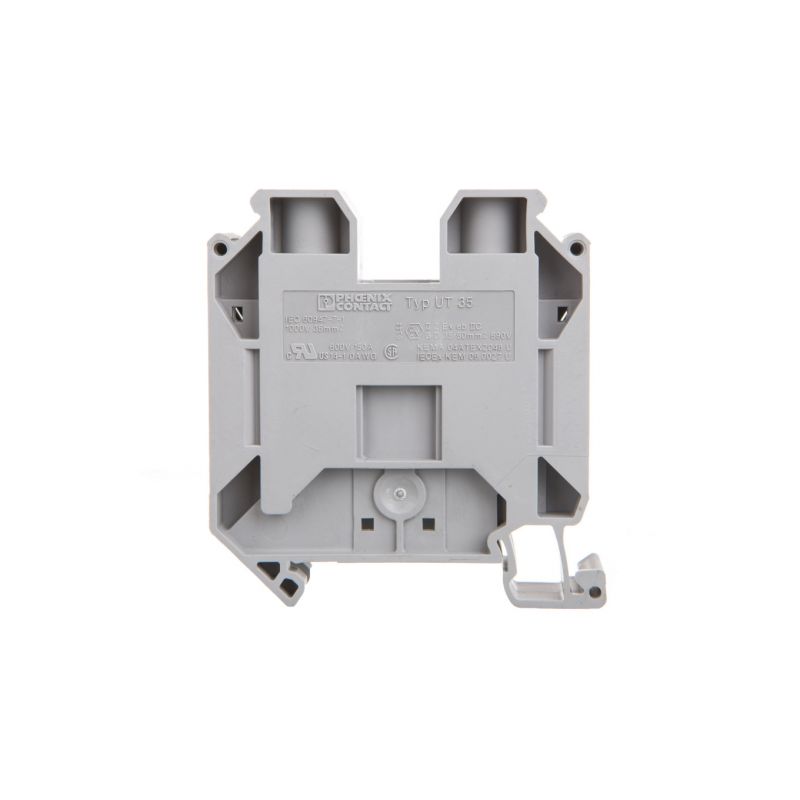

Through-connector UT 35

Dane techniczne

Rated voltage [V]

1000

Colour

Grey

Mounting method

Mounting rail DIN 35 mm

Rated voltage [V] 1

1000

Rated voltage [V] 2

1000

Length [mm]

65,1

Rated current In [A]

125

Explosion-proof Ex-e - confirmed

No

Explosion-proof version "EEx e"

No

Flammability class of insulating material according to UL 94

V0

Electrical connection type 2

Screw connection

Electrical connection type 1

Screw connection

Connection position

Side / side

Number of levels

1

Number of terminals per floor

2

Internal bridged floors

No

Type of insulating material

Thermoplastic

Width / size of pitch [mm]

16

Required closing plate

No

Cross-section of the connected single-wire cable [mm2] from

1,5

Cross-section of the connected single-wire cable [mm2] to

50

Cross-section of the connected cable with sleeve terminal [mm2] from

1,5

Cross-section of the connected cable with sleeve terminal [mm2] to

35

Cross-section of the connected cable without sleeve terminal [mm2] from

1,5

Cross-section of the connected cable without sleeve terminal [mm2] to

35

Cross-section of the connected multicore cable [mm2] from

1,5

Cross-section of the connected multicore cable [mm2] to

50
