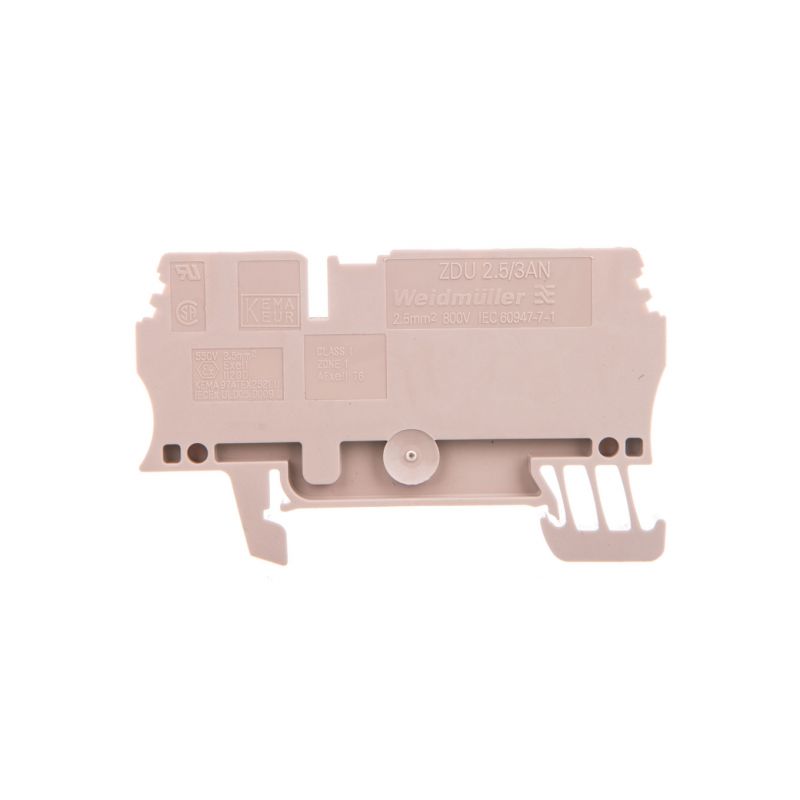

ZDU 2.5/3AN connector 1608540000

Dane techniczne

Rated voltage [V]

600

Colour

Beige

Mounting method

Mounting rail DIN 35 mm

Length [mm]

64,5

Rated current In [A]

27

Flammability class of insulating material according to UL 94

V0

Electrical connection type 2

Spring clamp

Electrical connection type 1

Spring clamp

Connection position

Side / side

Number of levels

1

Number of terminals per floor

2

Type of insulating material

Thermoplastic

Width / size of pitch [mm]

6.1000

Height at the lowest mounting method [mm]

38.5000

Cross-section of the connected single-wire cable [mm2] from

0,5

Cross-section of the connected single-wire cable [mm2] to

2,5
