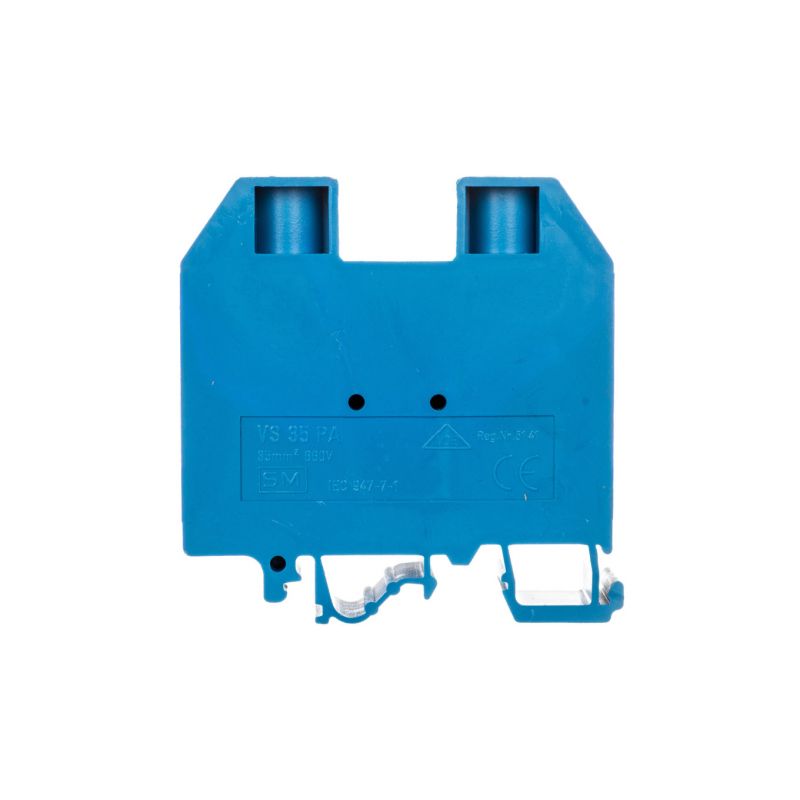

Threaded rail fitting 35mm2 blue VS 35 PAN 003901158

Dane techniczne

Colour

Blue

Mounting method

Mounting rail DIN 35 mm

Length [mm]

68

Rated current In [A]

125

Explosion-proof Ex-e - confirmed

No

Explosion-proof version "EEx e"

No

Operating temperature range [°C] from

-40

Operating temperature range [°C] to

100

Electrical connection type 1

Screw connection

Connection position

Side / side

Number of levels

1

Number of terminals per floor

2

Internal bridged floors

No

Type of insulating material

Thermoplastic

Width / size of pitch [mm]

16

Height at the lowest mounting method [mm]

68

Required closing plate

No

Cross-section of the connected single-wire cable [mm2] from

6

Cross-section of the connected single-wire cable [mm2] to

35

Cross-section of the connected cable without sleeve terminal [mm2] from

10

Cross-section of the connected cable without sleeve terminal [mm2] to

35
