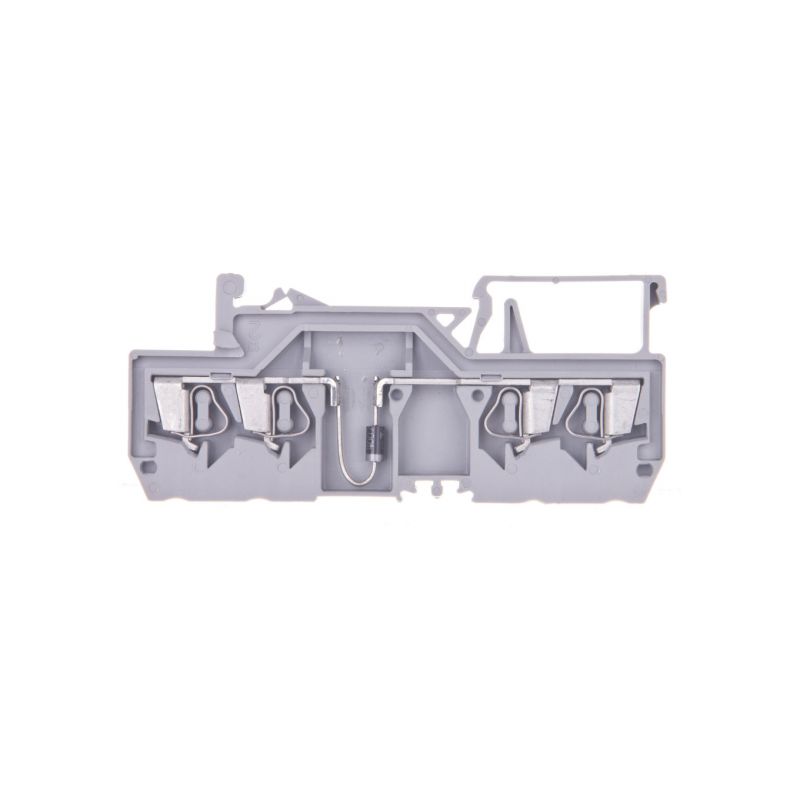

4-wire rail connector with diode 1N4007 2,5mm2 grey 280-815/281-410

Dane techniczne

Colour

Grey

Mounting method

Mounting rail DIN 35 mm

Length [mm]

75

Rated current In [A]

0.5000

Flammability class of insulating material according to UL 94

V0

Operating temperature range [°C] to

105

Electrical connection type 2

Spring clamp

Electrical connection type 1

Spring clamp

Connection position

Top / top

Number of levels

1

Number of terminals per floor

4

Type of insulating material

Thermoplastic

Width / size of pitch [mm]

5

Height at the lowest mounting method [mm]

28

Required closing plate

Yes

Cross-section of the connected single-wire cable [mm2] from

0,08

Cross-section of the connected single-wire cable [mm2] to

2,5

Cross-section of the connected cable without sleeve terminal [mm2] from

0,08

Cross-section of the connected cable without sleeve terminal [mm2] to

2,5

Cross-section of the connected multicore cable [mm2] from

0,08

Cross-section of the connected multicore cable [mm2] to

2,5

Indicator type

LED
