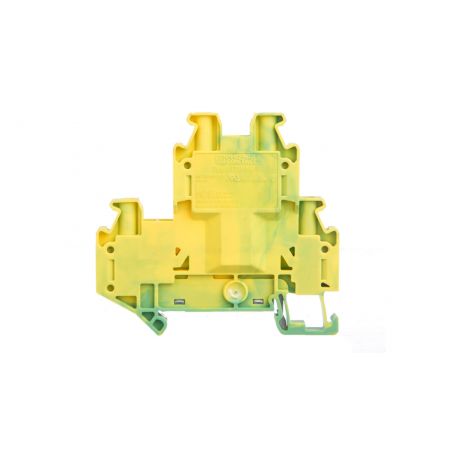

Protective rail fitting 2-storey 4mm2 green-yellow Ex UTTB 4-PE 3044759

Dane techniczne

Colour

Green-yellow

Mounting method

Mounting rail DIN 35 mm

Length [mm]

69,9

Flammability class of insulating material according to UL 94

V0

Electrical connection type 2

Screw connection

Electrical connection type 1

Screw connection

Connection position

Top / top

Number of levels

2

Number of terminals per floor

2

Type of insulating material

Thermoplastic

Width / size of pitch [mm]

6.2000

Height at the lowest mounting method [mm]

65

Required closing plate

Yes

Cross-section of the connected single-wire cable [mm2] from

0,14

Cross-section of the connected single-wire cable [mm2] to

4

Cross-section of the connected cable with sleeve terminal [mm2] from

0,14

Cross-section of the connected cable with sleeve terminal [mm2] to

4

Cross-section of the connected cable without sleeve terminal [mm2] from

0,14

Cross-section of the connected cable without sleeve terminal [mm2] to

4

Cross-section of the connected multicore cable [mm2] from

0,14

Cross-section of the connected multicore cable [mm2] to

6

Insulating element material

Thermoplastic
