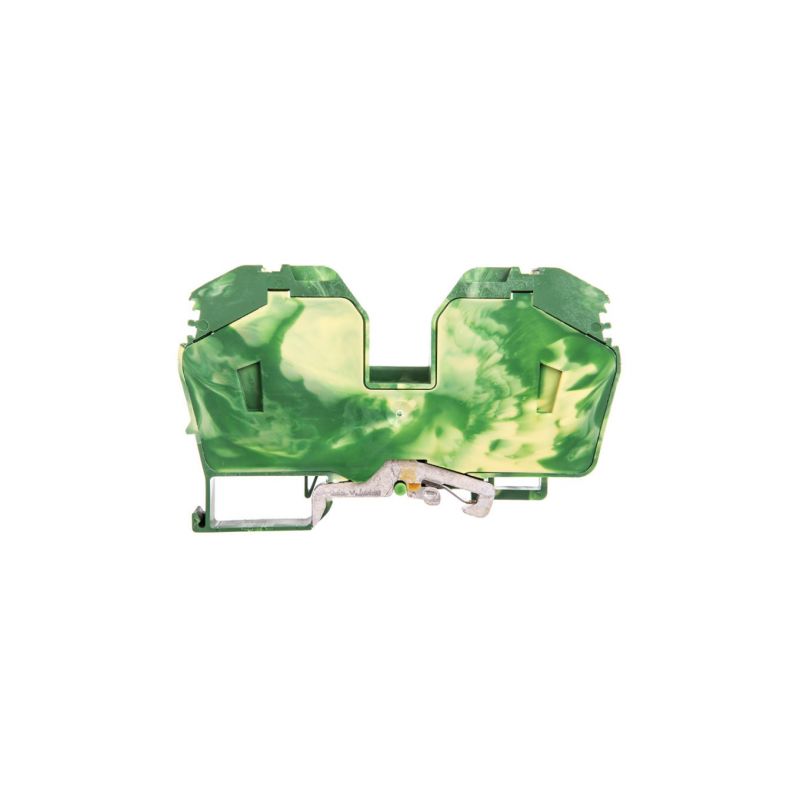

Connector 2-wire 35mm2 yellow-green 285-637

Dane techniczne

Colour

Green-yellow

Mounting method

Mounting rail DIN 35 mm

Length [mm]

100

Flammability class of insulating material according to UL 94

V0

Operating temperature range [°C] from

-35

Operating temperature range [°C] to

105

Electrical connection type 1

Spring clamp

Connection position

Top / top

Number of levels

1

Number of terminals per floor

2

Type of insulating material

Thermoplastic

Width / size of pitch [mm]

16

Height at the lowest mounting method [mm]

53

Required closing plate

No

Cross-section of the connected single-wire cable [mm2] from

6

Cross-section of the connected single-wire cable [mm2] to

35

Cross-section of the connected cable without sleeve terminal [mm2] from

6

Cross-section of the connected cable without sleeve terminal [mm2] to

35

Cross-section of the connected multicore cable [mm2] from

6

Cross-section of the connected multicore cable [mm2] to

35

PEN function

Yes
