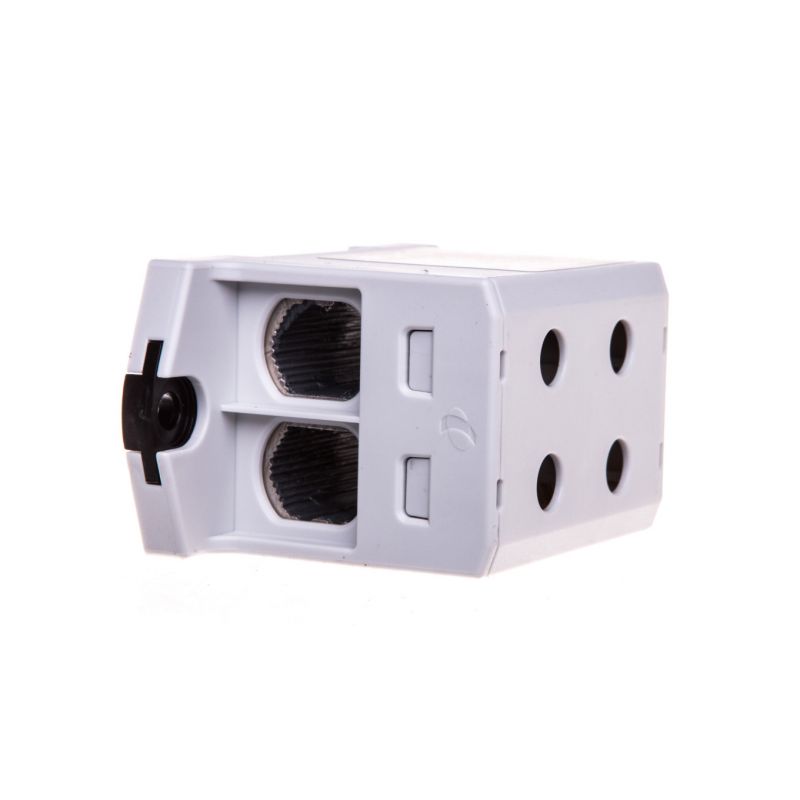

Rail connector splint split AL/CU 6-95mm2 TS-35 1-track 4-otw zac OTL95-2 gray MAA2095A10

Dane techniczne

Rated voltage [V]

690

Colour

Grey

Mounting method

Mounting rail DIN 35 mm

Length [mm]

84

Rated current In [A]

490

Electrical connection type 2

Screw connection

Electrical connection type 1

Screw connection

Connection position

Side / side

Number of levels

1

Number of terminals per floor

2

Type of insulating material

Thermoplastic

Width / size of pitch [mm]

42

Height at the lowest mounting method [mm]

51

Cross-section of the connected single-wire cable [mm2] from

6

Cross-section of the connected single-wire cable [mm2] to

95

Cross-section of the connected cable without sleeve terminal [mm2] from

6

Cross-section of the connected cable without sleeve terminal [mm2] to

95

Cross-section of the connected multicore cable [mm2] from

6

Cross-section of the connected multicore cable [mm2] to

95
