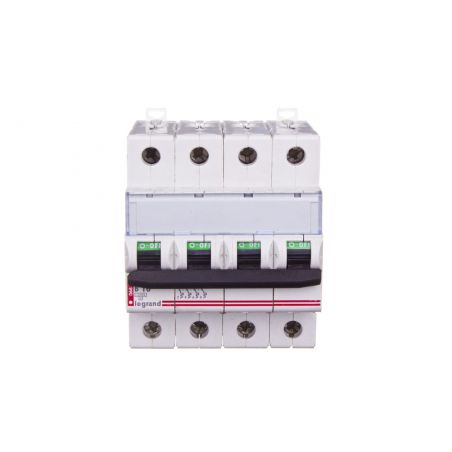

Circuit breaker 4P B 16A 10kA AC S314 TX3 404154

Dane techniczne

Rated short-circuit switching capacity according to EN 60898 [kA]

10

Voltage type

AC

Frequency [Hz]

50

Width expressed by the number of modules

4

Rated current [A]

16

Degree of protection (IP)

IP2X

Number of poles

4

Trigger characteristics

B

Simultaneous disconnected N pole

No

Possibility of additional equipment

Yes

Built-in depth [mm]

44

Rated short-circuit switching capacity according to IEC 60947-2 [kA]

50

Energy limitation class

3
