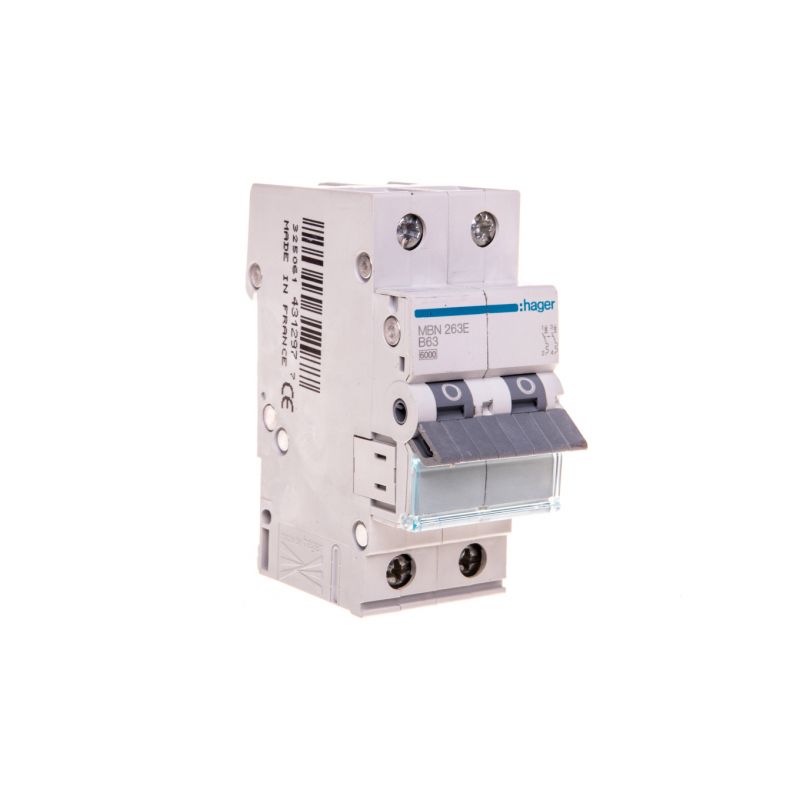

Circuit breaker 2P B 63A 6kA AC MBN263E

Dane techniczne

Rated short-circuit switching capacity according to EN 60898 [kA]

6

Voltage type

AC

Frequency [Hz]

50

Width expressed by the number of modules

2

Rated current [A]

63

Degree of protection (IP)

IP20

Rated voltage [V]

230

Number of poles

2

Trigger characteristics

B

Simultaneous disconnected N pole

No

Possibility of additional equipment

Yes

Built-in depth [mm]

69.5000

Energy limitation class

3

Overvoltage category

4

Degree of contamination

3
