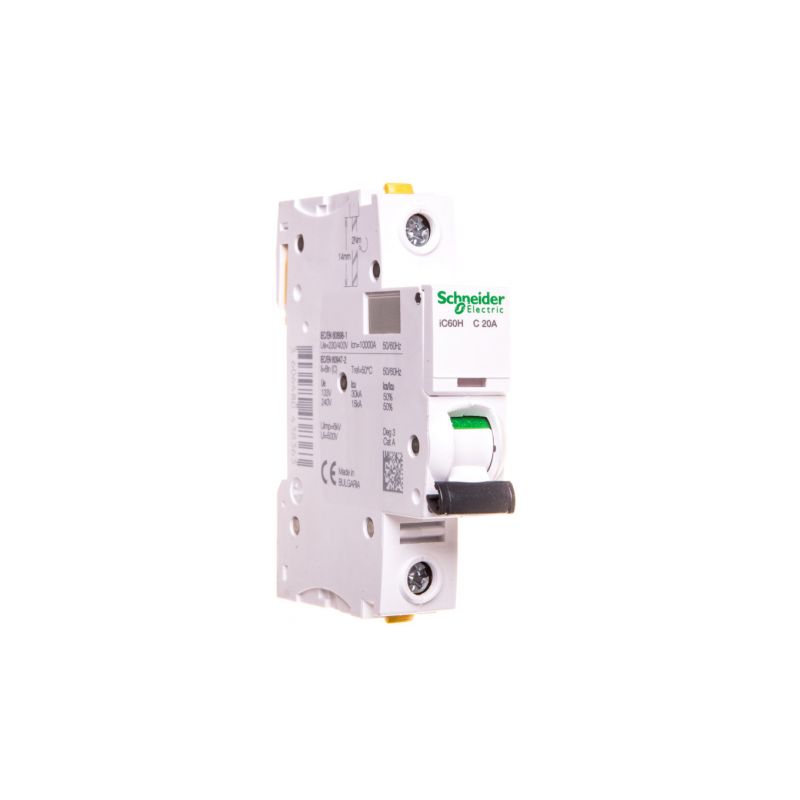

Circuit breaker 1P C 20A 10kA AC iC60H-C20 A9F07120

Dane techniczne

Rated short-circuit switching capacity according to EN 60898 [kA]

10

Voltage type

AC

Frequency [Hz]

50

Width expressed by the number of modules

2

Rated current [A]

20

Degree of protection (IP)

IP20

Rated voltage [V]

230

Trigger characteristics

C

Simultaneous disconnected N pole

No

Possibility of additional equipment

Yes

Built-in depth [mm]

78.5000

Rated short-circuit switching capacity according to IEC 60947-2 [kA]

15

Energy limitation class

3

Number of poles (total)

1

Overvoltage category

4

Degree of contamination

3
