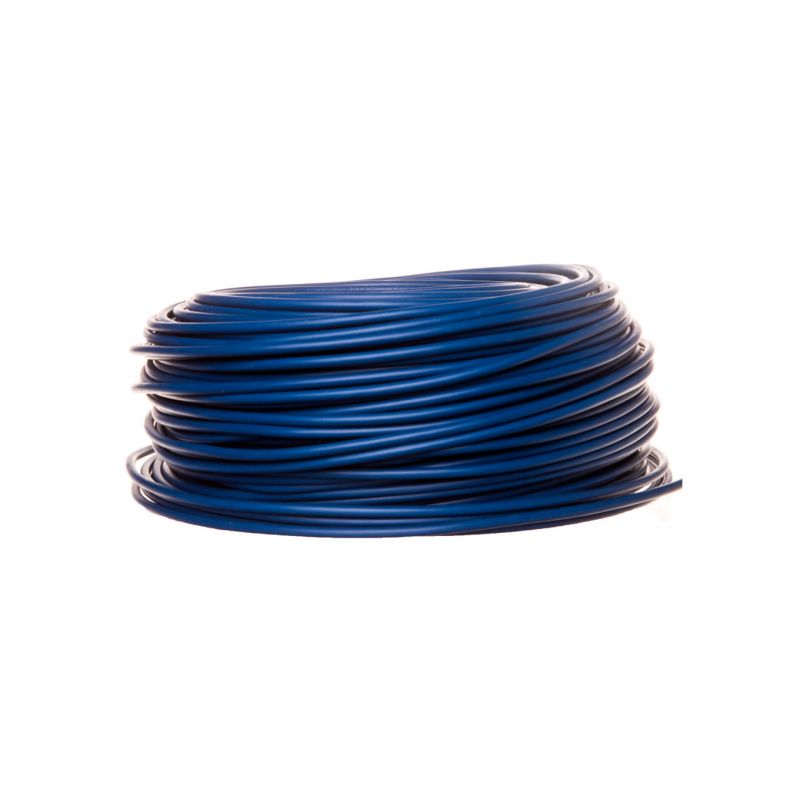

Installation cable H07V-K 4 dark blue 4520143 /100m/

Dane techniczne

Insulation color

Dark blue

Oil-resistant (according to EN 60811-2-1)

No

Approximate outer diameter [mm]

4.3000

Rated voltage U0 [V]

450

Rated voltage U [V]

750

Permissible temperature of the permanently laid cable [°C] from

-30

Permissible temperature of the permanently laid cable [°C] to

80

Permissible cable temperature for mobile connections [°C] from

5

Permissible cable temperature for mobile connections [°C] to

70

Low temperature resistance (according to EN 60811-1-4)

No

Low fumes (according to EN 61034-2)

No

Conductor insulation

PVC

Rated core section [mm2]

4

Halogen-free EN 50267-2-2

No

Flame-retardant

According to EN 60332-1-2

Approximate cable weight [kg/km]

45

Screen

No
