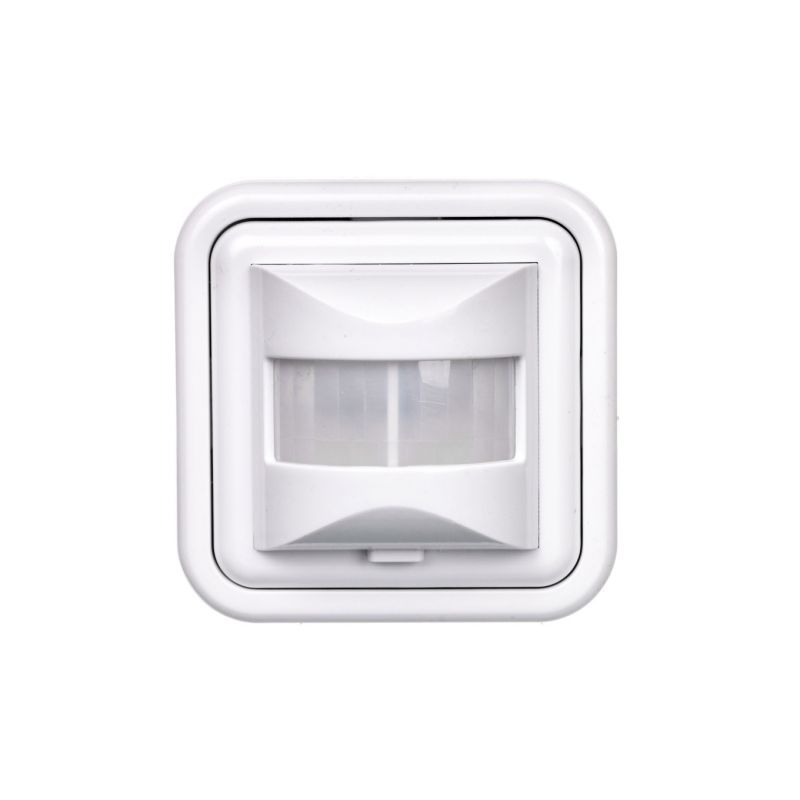

Motion sensor / 2 and 3 wire installation/ 500W 160 degrees white OR-CR-220

Dane techniczne

Degree of protection (IP)

IP20

Rated voltage [V]

230

Colour

White

Mounting method

Surface mounting

Model

Motion sensor

Halogen-free

No

Material

Plastic

Maximum switching power [W]

500

Color shade

white

Material type

Thermoplastic

Surface protection

Untreated

Surface finish

Matte

Temperature range [°C] from

-20

Temperature range [°C] to

40

Frequency range [Hz] from

50

Frequency range [Hz] to

50

Input of add-on modules

No

Horizontal detection angle from/to [°] from

10

Brightness threshold sensitivity [lx] from

3

Maximum switching time [min]

9

Horizontal detection angle from/to [°] to

170

HVAC Control

No

Forced shutdown

No

Animal zone

No

Stealth protection

No

Staircase surveillance

No

Bridging switch

No

Suitable for wireless transmission

No

Remote control

No

With signaling element

No

Light intensity threshold learning function

No

Dimming function

No

Maximum range straight ahead [m]

9

Maximum lateral reach [m]

9

Adjustable constant lighting level

No

Adjustable threshold value of light intensity

Yes

Adjustable sensitivity setting

Yes

Networkable

No

Alarm function

No

Brightness threshold sensitivity [lx] up to

2000

Minimum switching time [s]

7

Optimal installation height [m]

1.4000
